Yuyao Huangong automation instruments factory
$30≥20Piece/Pieces
| Количество минимального заказа: | 20 Piece/Pieces |
| транспорт: | Ocean,Land,Air,Express |
| Порт: | ningbo |
Оттенок:

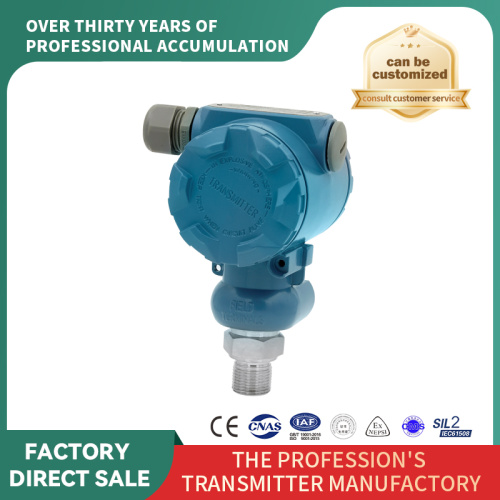

Модель: APB8100
место происхождения: Китай
Метод отображения: Аналоговый и цифровой
Модель №.: APB8100
Measuring Range: Medium-Pressure Gauge
Type: General Pressure Gauge
Accuracy: 0.5
заявка: Industrial
Structure: Pressure Transmitter
Installation Structure: Direct Mounting
Stability: ≤0.25f.S/Year
Power Supply: 12~36VDC(24VDC as Standard)
Environmental Temperature: -20~85°(-20~60° with LCD Display)
Pressure Port Material: 304/316L Ss
Transport Package: Carton
Спецификация: ПКС
Торговая марка: ХУАНГУН
Производительность: 120000PCS/Year
Настройка: Available
Стоимость доставки: Свяжитесь с поставщиком по вопросам перевозки и примерного времени доставки.
| Продажа единиц жилья | : | Piece/Pieces |
| Тип упаковки | : | Картонная упаковка |
The file is encrypted. Please fill in the following information to continue accessing it
| Accuracy | 0.25%F.S,0.5%F.S |
| Measuring range | -0.1~60Mpa Minimum range:0-10kpa |
| Linearity | Better than 0.25%F.S |
| Stability | ≤0.25F.S/Year |
| Temperature drift | <±0.75F.S(0~50°) |
| Response time | ≤10mS |
| Power supply | 12~36VDC(24VDC as standard) |
| Output | 4~20mA,1~5V,0~5V,0~10V |
| Load resistance | 0~600Ω(For 24VDC, 4~20mA 2-wire system) |
| Pressure cooker in permission | 1.5 times the maximum rated pressure |
| Communication protocol | HART protocol, 485 and other protocols can be optional |
| Environmental temperature | -20~85°(-20~60° with LCD display) |
| Protection | IP65 |
| Measured medium temperature | -20°~85°(Up to 300° or more with cushioned heat pipes) |
| storage temperature | -45~+125° |
| pressure port | Threads, flanges, clamps, etc. can be customized |
| Electrical Interface | M20*1.5 |
| Pressure port material | 304/316L SS |
| Isolation Diaphragm Material | 316L SS |
| Flange type diaphragm material | 316L, Tantalum, Hastelloy C or coated PTFE |
| Exd II CT6 Gb | Exd II CT6 Gb |
| Shell material | cast aluminum |
