Yuyao Huangong automation instruments factory
$25≥5Piece/Pieces
| Количество минимального заказа: | 5 Piece/Pieces |
| транспорт: | Ocean,Land,Express,Air |
| Порт: | ningbo |
Оттенок:

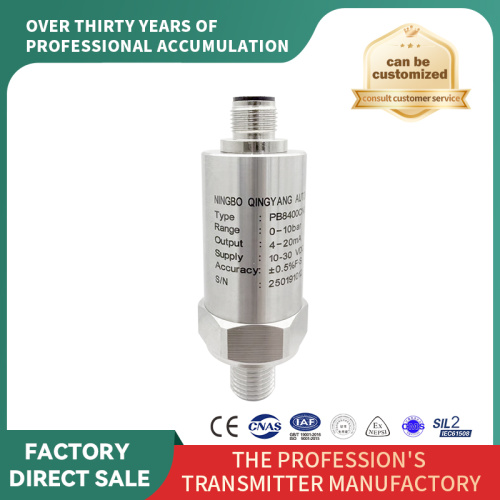

Модель: PB8400
Модель №.: PB8400-2
Measuring Medium: Steam, Gas, Liquid
Accuracy Grade: 0.1%F.S.0.2%F.S.0.5%F.S
Pressure Range: -0.1~60MPa
IP Rating: IP65
сертификация: CE.ISO
Ambient Temperature: -20~85degrees Celsius
Output: 4~20mA, 1~5V, 0~5V, 0~10V
Interface Material: 304 or 316L Stainless Steel
Communication Protocol: 485 or Hart Protocol Optional
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Origin: China
Производительность: 120000 Pieces / Year
Настройка: Available
Type: Remote Pressure Transmitter
Structure Type: Diffused Silicon Pressure Transmitter
Стоимость доставки: Свяжитесь с поставщиком по вопросам перевозки и примерного времени доставки.
| Продажа единиц жилья | : | Piece/Pieces |
| Тип упаковки | : | Картонная упаковка |
The file is encrypted. Please fill in the following information to continue accessing it
| Basic Error | 0.25%F-S, 0.5%F-S |
| Measuring Range | -0.1~60MPa, minimum range 10kPa |
| Linearity | Better than 0.25%F-S |
| Temperature drift | <±0.75%F-S (0~50ºC) |
| Long-term stability | ≤0.25%F-S/year |
| Response time | ≤10mS |
| Power supply | 24VDC (or 14VDC~36VDC any constant voltage power supply) |
| Output | 4~20mA, 1~5V, 0~5V, 0~10V |
| Pressure Overload Limit | 1.5 times the maximum rated pressure |
| Load Resistance | 0~600Ω (for 24VDC, 4~20mA 2-wire) |
| Communication Protocol | 485 or HART protocol optional |
| Ambient Temperature | -20~85ºC |
| Storage temperature | -45~+125ºC |
| Measured medium temperature | -20~85ºC (Higher than 85ºC can be dissipated by heat pipe) |
| Pressure interface | Threads, flanges, clamps, etc. can be customized. |
| Shell protection grade | IP65 |
| Intrinsically safe and explosion-proof | Explosion-proof grade Exia II CT4Ga |
| Interface material | 304 or 316L stainless steel |
| Isolation diaphragm material | 316L stainless steel (or Hastelloy C) |
| Housing material | 304 stainless steel |
| Power Consumption | 304 stainless steel |
