Yuyao Huangong automation instruments factory
$172≥5Piece/Pieces
| Количество минимального заказа: | 5 Piece/Pieces |
| транспорт: | Ocean,Land,Air,Express |
| Порт: | ningbo |
Оттенок:

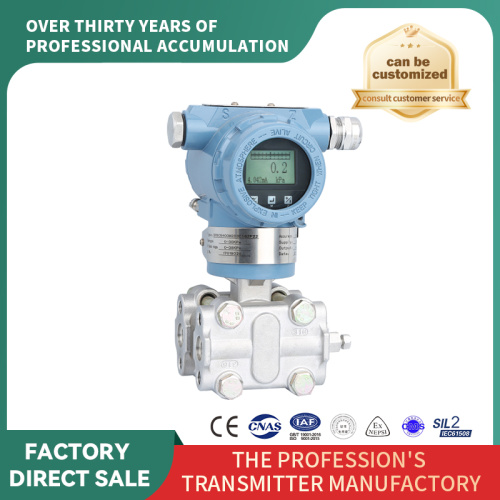

Модель: SPB
Модель №.: SPBC-1
Pressure Range: Differential Pressure
Display Type: Lcd
Accuracy Grade: 0.5g
IP Rating: Ip67
сертификация: CE/ISO
Customized: Customized
Over Pressure: 1.5 Times The Full Scale
Accuracy: 0.25%F.S. 0.5%F.S.
Output: 4-20ma
Ambient Temp: -20~85degrees Celsius
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Origin: China
Производительность: 120000 Pieces / Year
Настройка: Available
Type: Capacitance
Structure Design: Thread Type
Стоимость доставки: Contact the supplier about freight and estimated delivery time.
| Продажа единиц жилья | : | Piece/Pieces |
| Тип упаковки | : | Картонная упаковка |
The file is encrypted. Please fill in the following information to continue accessing it
| Accuracy | ±0.25% to ±0.075% |
| Ambient Temp effect | 28ºC Scale ratio from 1:1 to 10:1 : ≤±0.2% Minim scale(≤1.5Kpa): ±0.5% |
| Influence of pressure | Zero error(can eliminate under static pressure):Static pressure: 0 to 13.7Mpa, ±0.2%/6.9Mpa Over 13.7Mpa, ±0.5%/6.9Mpa 13.7Mpa, ±0.5%/6.9Mpa Full scale error: ±0.25%/6.9Mpa |
| Full scale error | ±0.25%/6.9Mpa Stability 12months, 0.25%F·S, 28ºC Max pressure :6.9Mpa, scale for 1:1 |
| Place influence | Move less than 250Pa on zero,no influence for scale General performance |
| Vibration influence(except minim scale) | Measure random axis ≤ ±0.1%F·S(15 to 2000Hz) |
| Influence of power supply | effect ≤0.05%/V |
| Insulation strength | Isolation and reverse polarity protection No arc light under 50Hz,100Vpp |
| supply voltage | No damage when reverse connection under 24VDC Power supply:12…45VDC |
| Ambient Temp | -20ºC…85ºC |
| Storage Temp | -40ºC…104ºC |
| Relative humidity | 0…90% |
| Diaphragm materia | 316L, Hastelloy C, Monel,Ta, stainless steel, optional |
| protection | IP67 |
| Fill fluid | silicone oil, Glyceride and water |
| Exd II CT6 Gb | |
