Yuyao Huangong automation instruments factory
$187≥1Piece/Pieces
| Количество минимального заказа: | 1 Piece/Pieces |
| транспорт: | Ocean,Land,Air,Express |
| Порт: | ningbo |
Оттенок:
Модель: SPB
Модель №.: SPB-1
Measuring Medium: Steam,Gas,Liquid
Accuracy Grade: 0.1%F.S.0.2%F.S.0.5%F.S
Pressure Range: -0.1~60MPa
IP Rating: IP65
сертификация: CE/ISO/Sil
Influence Of Power Supply: Effect ≤0.05%/V
Ambient Temp: -20ºC~85ºC
Diaphragm Materia: 316L, Hastelloy C, Monel, Ta, Stainless Steel, Opt
Protection: IP67
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Производительность: 120000 Pieces / Year

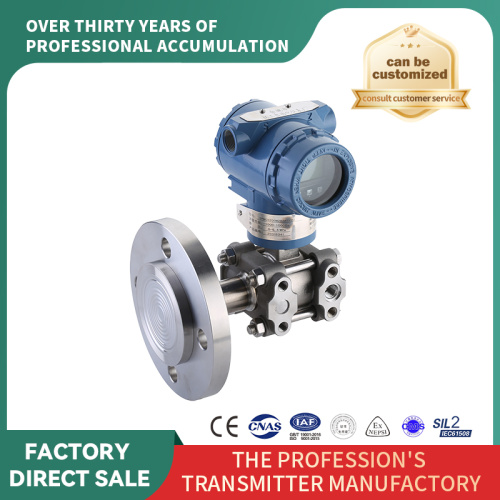

Type: Differential Pressure Transmitter
Structure Type: Capacitive Pressure Transmitter
Стоимость доставки: Свяжитесь с поставщиком по вопросам перевозки и примерного времени доставки.
| Продажа единиц жилья | : | Piece/Pieces |
| Тип упаковки | : | Картонная упаковка |
The file is encrypted. Please fill in the following information to continue accessing it
| Accuracy | ±0.25% to ±0.075% |
| Ambient Temp effect | 28ºC Scale ratio from 1:1 to 10:1 : ≤±0.2% Minim scale(≤1.5Kpa): ±0.5% |
| Influence of pressure | Zero error(can eliminate under static pressure):Static pressure: 0 to 13.7Mpa, ±0.2%/6.9Mpa Over 13.7Mpa, ±0.5%/6.9Mpa 13.7Mpa, ±0.5%/6.9Mpa Full scale error: ±0.25%/6.9Mpa |
| Full scale error | ±0.25%/6.9Mpa Stability 12months, 0.25%F·S, 28ºC Max pressure :6.9Mpa, scale for 1:1 |
| Place influence | Move less than 250Pa on zero,no influence for scale General performance |
| Vibration influence(except minim scale) | Measure random axis ≤ ±0.1%F·S(15 to 2000Hz) |
| Influence of power supply | effect ≤0.05%/V |
| Insulation strength | Isolation and reverse polarity protection No arc light under 50Hz,100Vpp |
| supply voltage | No damage when reverse connection under 24VDC Power supply:12…45VDC |
| Ambient Temp | -20ºC…85ºC |
| Storage Temp | -40ºC…104ºC |
| Relative humidity | 0…90% |
| Diaphragm materia | 316L, Hastelloy C, Monel,Ta, stainless steel, optional |
| protection | IP67 |
| Fill fluid | silicone oil, Glyceride and water |
| Exd II CT6 Gb | |
