Yuyao Huangong automation instruments factory
$75≥10Piece/Pieces
| Количество минимального заказа: | 10 Piece/Pieces |
| транспорт: | Ocean,Land,Air,Express |
| Порт: | ningbo |
Оттенок:
Модель: APB8600
место происхождения: Китай
Метод отображения: Аналоговый и цифровой
Модель №.: APB8600
Range: 0-10m
Measurement Accuracy: ±5mm
Accuracy: 0.2%
Kind: Liquid Level Transmitter
Structure: All In One
сертификация: Ce
Material: Ss304
Process Temperature: -20℃~80℃
Power Supply: 12 to 36VDC
Output: 4~20madc
Storage Temp: -45~125ºC
Housing Material: 304 Stainless Steel or 316 Stainless Steel
Transport Package: Carton
Спецификация: ПКС
Торговая марка: ХУАНГУН
Настройка: Available
After-sales Service: in Good Repair
Principle: Measure The Water or Gas or Temperature
| Продажа единиц жилья | : | Piece/Pieces |
| Тип упаковки | : | Картонная упаковка |
The file is encrypted. Please fill in the following information to continue accessing it
| Accuracy | 0.5%F·S |
| Measuring range | 0…5m to 0…1500m |
| Linearity | superior to 0.2%F·S |
| Temperature drift | |
| Stability | superior to 0.5%F·S for 1 year |
| Response time | 10mS |
| Power supply | 12 to 36VDC |
| Output | 4…20mADC |
| Load resistance | 0 ~600Ω |
| Liquid temp | -10…60ºC |
| Compensated temp | -10…60ºC |
| Storage temp | -45…125ºC |
| Installation position | direct into the bottom of the liquid |
| Housing material | 304 stainless steel or 316 stainless steel |
| Diaphragm material | 316L stainless steel |
| Breathing cable material | polythene or PTFE |
| Weight | Stainless steel pipe(G1): about 300g Breathing cable(G2): about 65g/m Junction box(G3):about 300g-700g |
| Gross weight(G) | G=G1+G2*length(m)+G3 |
| Power consume | <5W(24VDC) |

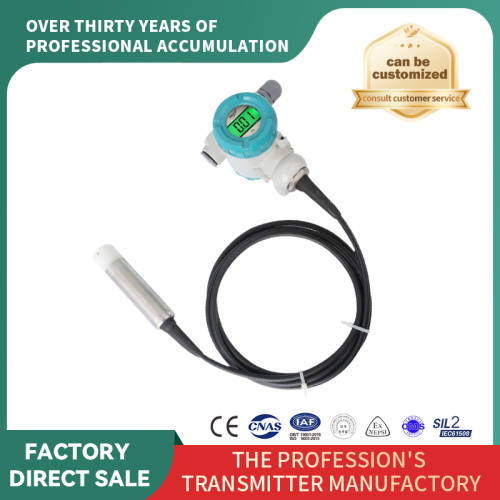

Погружные гидростатические датчики серии APB8600 состоят из дыхательного кабеля и трубы из нержавеющей стали, которые измеряют высоту жидкости по давлению датчика, а затем преобразуют его в стандартный электрический сигнал.
