Yuyao Huangong automation instruments factory
$1250≥5Piece/Pieces
| Количество минимального заказа: | 5 Piece/Pieces |
| транспорт: | Ocean,Land,Air,Express |
| Порт: | n,i,n |
Оттенок:

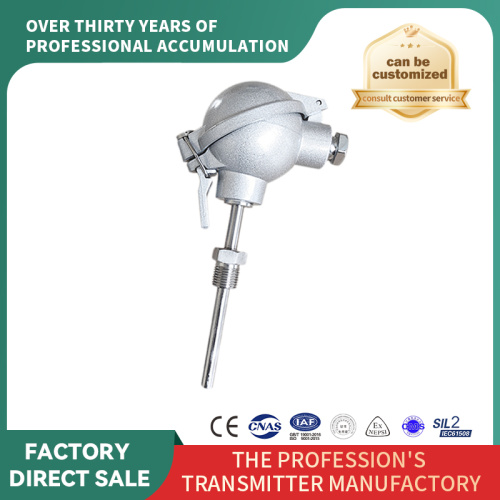

Модель: WR
| Продажа единиц жилья | : | Piece/Pieces |
| Тип упаковки | : | Картонная упаковка |
The file is encrypted. Please fill in the following information to continue accessing it
| Model No. | Graduated number | Nominal resistance value at 0°C R (0°C) (Ω) | Resistance Ratio R100/R(0ºC) |
Temperature Measurement Range, Accuracy Grade and Tolerance | |
| Temperature Measurement Range (ºC) | Accuracy Class and Tolerance | ||||
WZP |
PT10 | 10 | 1.3850 | Ceramic element: -200~+600 Glass element: -200~+500 Mica components: -100~+420 |
Grade A:±(0.15+0.2% |t|) Grade B:±(0.3+0.5% |t|) |
| PT100 | 100 | ||||
| WZC | Cu10 | 50.00 ±0.05 | 1.4280±0.0020 | -50~+100 | ±(0.30+0.006 |t|) |
| Cu100 | 100.00 ±0.10 | ||||
| Remarks | Cu100 copper RTDs and PT10 resistors need to be supplied by agreement. | ||||
