Yuyao Huangong automation instruments factory
$38≥5Piece/Pieces
| Количество минимального заказа: | 5 Piece/Pieces |
| транспорт: | Ocean,Land,Air,Express |
| Порт: | ningbo |
Оттенок:

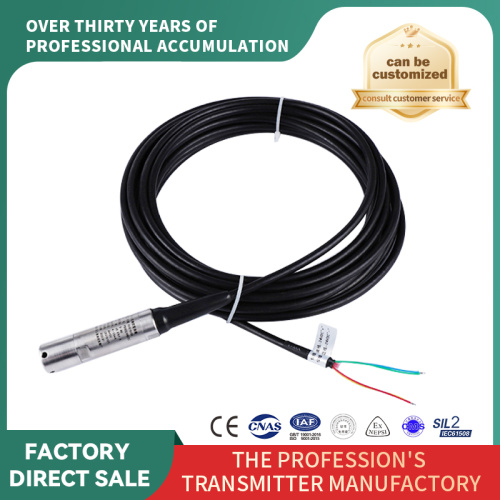

Модель: PB8600
Модель №.: PB8600-1
Pressure Range: Atmospheric pressure
Accuracy Grade: 0.25%F.S. 0.5%F.S.
IP Rating: IP68
сертификация: CE/ISO/Sil
Measuring Range: 0 to 0.5 Meters and Above
Shell Material: 304 Stainless Steel
The Temperature Of The Measured Medium: -10~60℃
Источник питания: 24 В
Type Of Protection: Standard Type / Exia II CT4ga
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Производительность: 120000 Pieces / Year
Настройка: Available
Type: Silicon Piezoresistive Type
Structure Design: Input-Based
Стоимость доставки: Свяжитесь с поставщиком по вопросам перевозки и примерного времени доставки.
| Продажа единиц жилья | : | Piece/Pieces |
| Тип упаковки | : | Картонная упаковка |
The file is encrypted. Please fill in the following information to continue accessing it
| Accuracy | 0.5%F·S |
| Measuring range | 0…5m to 0…1500m |
| Linearity | superior to 0.2%F·S |
| Temperature drift | |
| Stability | superior to 0.5%F·S for 1 year |
| Response time | 10mS |
| Power supply | 12 to 36VDC |
| Output | 4…20mADC |
| Load resistance | 0 ~600Ω |
| Liquid temp | -10…60ºC |
| Compensated temp | -10…60ºC |
| Storage temp | -45…125ºC |
| Installation position | direct into the bottom of the liquid |
| Housing material | 304 stainless steel or 316 stainless steel |
| Diaphragm material | 316L stainless steel |
| Breathing cable material | polythene or PTFE |
| Weight | Stainless steel pipe(G1): about 300g Breathing cable(G2): about 65g/m Junction box(G3):about 300g-700g |
| Gross weight(G) | G=G1+G2*length(m)+G3 |
| Power consume | <5W(24VDC) |
