Yuyao Huangong automation instruments factory
$46≥5Piece/Pieces
| Количество минимального заказа: | 5 Piece/Pieces |
| транспорт: | Ocean,Land,Air,Express |
| Порт: | ningbo |
Оттенок:
Модель: PB8100
Measuring Medium: Steam, Gas, Liquid
Accuracy Grade: 0.25%F.S. 0.5%F.S.
сертификация: CE/ISO/Sil
Response Time: Less Than or Equal To10ms
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Производительность: 120000 Pieces / Year
Настройка: Available
Type: Flange Type

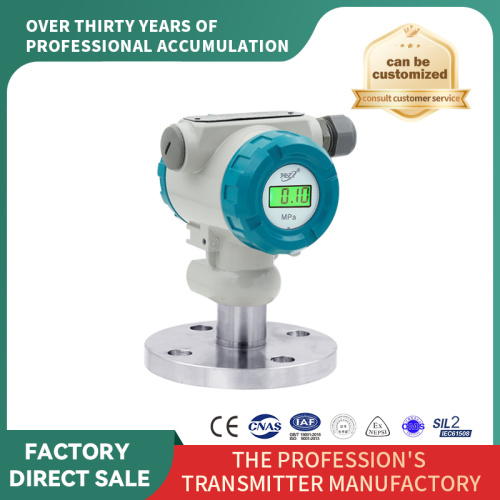

Structure Type: Diffused Silicon Pressure Transmitter
Модель №.: PB8100-4
Pressure Range: -0.1~60MPa
IP Rating: IP65
Over Pressure: 1.5 Times The Full Scale
Power Supply: 12~36VDC
Output: 4~20mA (or 1~5V)
Стоимость доставки: Свяжитесь с поставщиком по вопросам перевозки и примерного времени доставки.
| Продажа единиц жилья | : | Piece/Pieces |
| Тип упаковки | : | Картонная упаковка |
The file is encrypted. Please fill in the following information to continue accessing it
| Accuracy | 0.25%F·S ,0.5%F·S |
| Measuring range | -0.1…0bar to -1…0bar 0…0.1bar to 0…600bar to -1…25bar 0…1bar to 0…35bar absolute |
| Linearity | superior to 0.25%F·S |
| Stability | superior to 0.25%F·S for 1 year |
| Temperature drift | superior to ± 0.75%(0 to 50ºC) |
| Response time | ≤10mS |
| Power supply | 12…36VDC |
| Output | 4…20mA (or 1…5V) |
| Load resistance | 0 to 600Ω |
| Proof pressure | 150%F·S |
| Process connection | M20*1.5 or 1/2NPT, Flange,Clamp or customized |
| Electric connection | M20*1.5 |
| Protection | IP65 |
| Wetted parts | 304 stainless steel |
| Diaphragm material | 316L stainless steel |
| Housing material | cast aluminum |
| Power supply | <0.5W (24VDC) |
| Ambient temp | -20…85ºC |
| Compensated Temp | -20…85ºC |
| Storage temp | -45…125ºC |
| Exd II CT6 Gb | |
