Yuyao Huangong automation instruments factory
$18≥5Others
| Количество минимального заказа: | 5 |
| транспорт: | Ocean,Land,Air,Express |
| Порт: | ningbo |
Оттенок:
Модель: PB63
Measuring Medium: Steam, Gas, Liquid
Accuracy Grade: 0.1%F.S.0.2%F.S.0.5%F.S
Pressure Range: -0.1~60MPa
IP Rating: Ip65
сертификация: CE.ISO
Over Pressure: 1.5 Times The Full Scale
Response Time: ≤10ms
Power Supply: 24VDC or (12VDC~36VDC Optional)
Output: 4~20mA (or 1~5V)
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Источник: Китай
Производительность: 120000 Pieces / Year
Настройка: Available

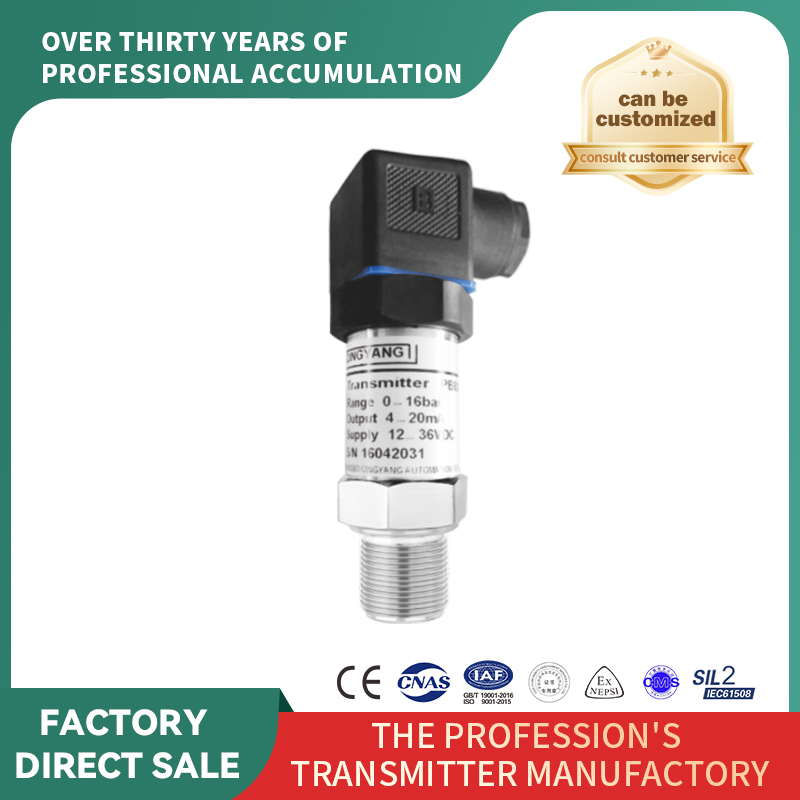

Type: Remote Pressure Transmitter
Structure Type: Diffused Silicon Pressure Transmitter
Стоимость доставки: Свяжитесь с поставщиком по вопросам перевозки и примерного времени доставки.
Модель №.: PB6300-6
| Тип упаковки | : | Картонная упаковка |
The file is encrypted. Please fill in the following information to continue accessing it
| Accuracy | 0.5%F·S |
| Measuring range | -0.1…0bar to -1…0bar 0…0.1bar to 0…600bar to -1…25bar relative 0…1bar to 0…35bar absolute |
| Linearity | Superior to 0.25%F·S |
| Stability | superior to 0.25%F·S |
| Temperature drift | superior to ±0.75%F·S (0…50ºC) |
| Response time | ≤10mS |
| Power supply | 24VDC or (12VDC…36VDC optional) |
| Output | 4…20mA (or 1…5V) |
| Load resistance | 0~600Ω |
| Proof pressure | 150%F·S |
| Ambient temp | -20…85ºC |
| Compensated temp | -20…85ºC |
| Storage temp | -45…125ºC |
| Process connection | M20*1.5male or 1/2 NPT male,Flange or clamp or customized |
| Electric connection | DIN43650-A/ISO standard junction box |
| Wetted parts | 304 stainless steel |
| Diaphragm Material | 316L stainless steel |
| Housing Material | 304 stainless steel or 316 stainless st |
